1. What is a sheet metal bending process?
Bending is a kind of re-shaping process using a press brake on the sheet metals, and it is one of the most commonly used sheet metal fabrication operations. With this process, the equipment will force the workpiece to be deformed with a certain angle.
During the bending process, on the press brake, the workpiece to be formed is placed flat on the bottom mold with a V groove, then the other die block will press the workpiece material into the mold to form the shape out a certain angle. And due to the materials’ spring-back property, the metal sheet must be over-bent to achieve the proper bend angle.

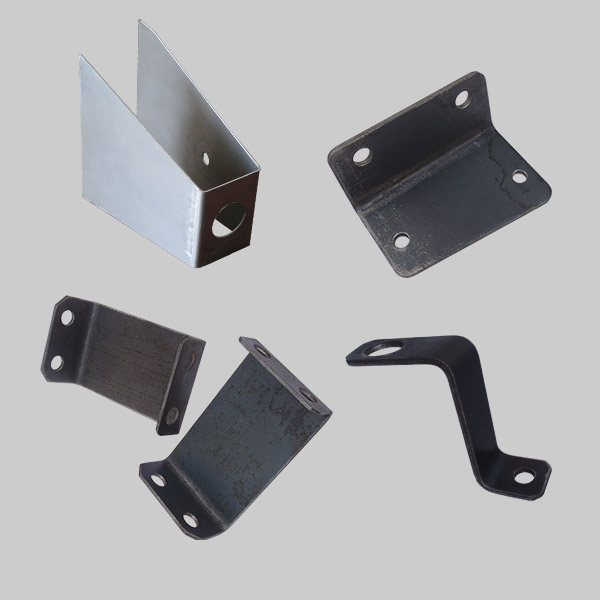

And we usually use the bending process to form shapes like boxes, enclosures, U shapes, V shapes, etc.
A video showing the metal bending process
(Video from Energymission.com)
2. Suitable metal materials for the bending process
Generally speaking, the thickness is a significant point to consider the part’s bending property. The thinner the metal is, the more comfortable to be bent it will be. If the metal is too thick, or its ductility is weak, sometimes we need to do the heat treatment like annealing on the materials in advance or heat the part’s blanks before bending.
Usually, the most common metal we used for the bending process include:
- Mild steel sheets(sometimes after being heat-treated)
- Alloyed steel sheets like 65Mn
- Stainless steel sheets
- Aluminum sheets
- Mild Brass sheets
3. Different metal bending processes
3.1 Coining – Workpieces will contact the dies entirely during the bending process. Coining goes with high precision but also high cost, so that is not often used.

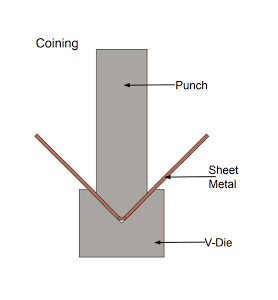

Figure 3.1 – Coining Bending
3.2 Bottom Bending – Small space is left between the workpiece and the bottom of the V opening on the die while bending. This process goes with better accuracy and less spring-back comparing to Air bending process but needs more dies and tools for each angle or sheet thickness or materials.
Figure 3.2 – Bottoming Bending
3.3 Air Bending – This is almost the most common used bending process. During air bending, the upper die will punch the material into the V groove of the bottom die, and the space left between the material and the bottom of the V groove is greater than the other bending processes. The air bending process is suitable for different kinds of metal sheets with different thicknesses but no need to change the dies, which means higher productivity.

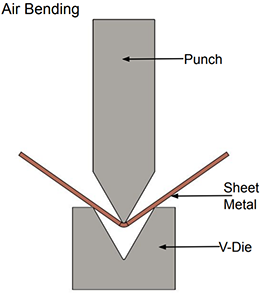

Figure 3.3 – Air Bending
3.4 Roll Bending – This is a common process used to make metal sheets into curved shapes.

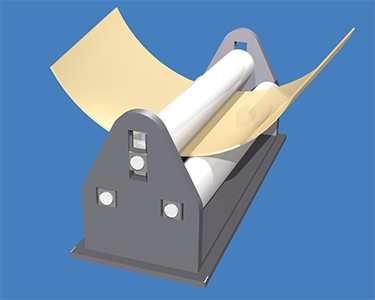

Figure 3.4 – Roll Bending
3.5 Rotary Bending – In the rotary bending process, the top die is made by a rotating steel cylinder with an open on it, and this open is cut out at the same angle as the shape of the workpiece. While the bending process is ongoing, the top die will rotate and bend the metal sheet material.

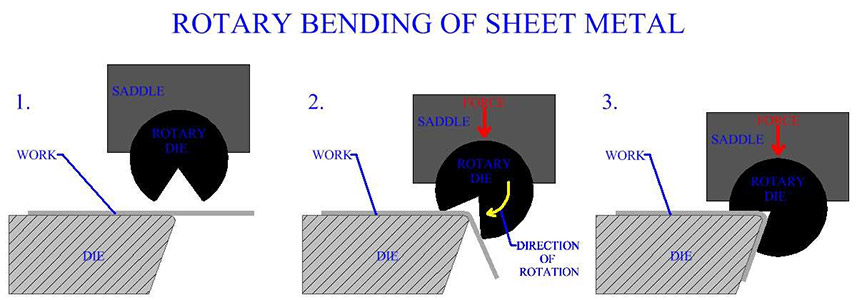

Figure 3.5 – Rotary Bending
3.6 Wipe Bending – With the wipe bending process, one end of the workpiece will be tightly clamped by pressure, and the punch on the upper die moves up and down, and that will bend the other end of the workpiece to a certain angle that we want.

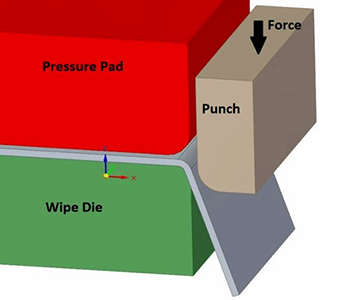

Figure 3.6 – Wipe Bending
