Sheet Metal Deep Drawing Process

Sinoway offers deep drawing processing services and custom sheet metal deep drawn stamping parts

With the heaviest deep drawing press of 3000 tons and other deep drawing production lines, we can manufacture most deep drawing products, including the truck body parts. And from the 1990s, Sinoway started the deep-drawing processing services and keeps for more than 20 years. And our custom sheet metal deep-drawn stamping parts serve a wide variety of industries, and we got excellent reviews from our customers.

Our technical team includes rich-experienced engineers, who have been working with us from the factory established, and contains young men with advanced technologies. And the whole technical team has been equipped with modern mechanical fabrication designing software, Auto CAD, SolidWorks, Pro-E, UG, etc., to fulfill the currently more complicated products’ diverse requirements.

Typical products made by the deep drawing process

Simple introduction of the metal deep drawing process

1. What is a sheet metal deep drawing process?

The deep drawing process is a kind of stamping process that uses molds to shape the flat metal blanks into various hollow workpieces or form other shapes from the existing open hollow parts.

In the process of deep drawing, the convex die keeps going down, and making the flat metal blank on the concave die shrink and gradually be pulled into the gap between the convex and concave dies to form a straight wall. While the area under the convex die becomes the bottom of the deep drawing part, the flat blank will be transformed into the shape we want by the end of the deep drawing process. The deep drawing die should not have sharp edges, but a specific radius is needed, and the gap between the convex and concave die should be slightly larger than the blank metal thickness.

We can make barrel-shaped, gradient-shaped, spherical, conical, parabolic, and other rotating body parts with the deep drawing process.

A video can show the deep drawing process simply.

(Video from Geerts)

2. Materials suitable for the deep drawing process

Softer materials are much easier to deform and therefore require less force to draw. And the most common metal we used for deep drawing includes:

• Cold-rolled steel plates
• Stainless steel like SS304, SS316
• Aluminum
• Brass

3. Prospects of the metal stamping and deep drawing processes

1. High technology has promoted the transformation and development of traditional forming technology. Stamping technology will continue to develop faster, and along with this development, the demand for “precision, economy, and clarity” will be highlighted.

2. Stamping and forming technology will be more scientific, numerical, and controllable.

3. Focus on the whole process of product manufacturing and maximize multi-objective global optimization.

4. The ability of rapid analysis and evaluation of product manufacturability and forming process will have significant development.

5. Stamping technology, including the deep-drawing technology, will have greater flexibility to adapt to the future fabricating mode of small-batch and multiple varieties and meet the development trend of market diversification and personalized demand.

6. Advanced forming technology based on the composite process will develop from manufacturing blanks to parts, from individual components to the whole structure.

Unique advantages of Sinoway in sheet metal deep drawing production

After more than 20 years of practice, Sinoway has demonstrated its strengths in the metal stamping and deep drawing industry, excelling in the fierce industry competition. In addition to the necessary production conditions, several advantages that are unique to Sinoway include:

1. The combination of traditional production processes and modern high technology allows the manufacture of components with higher complexity;

2. A technical team that includes both hands-on production engineers from the workshop and professional design engineers from modern universities;

3. In addition to metal stamping and deep drawing lines, Sinoway also has other metal parts manufacturing lines such as casting, forging, machining, and surface treatment to meet customers’ demands for one-stop service of complete products;

4. Sinoway has many metal material suppliers with whom we have cooperated for many years. They can supply quality metal sheets with different materials and thicknesses and under different national standards to ensure our quality consistency and production capacity;

Benefits of metal stamping and deep drawing processes

As an effective processing method in modern industry, the metal stamping and deep-drawing forming process have many unique advantages for producing various sheet parts. It is an advanced manufacturing technology that is irreplaceable. The stamping-formed components’ benefits include light-weight, high stiffness, high strength, good interchangeability, low cost, easy to realize mechanical automation, and high production efficiency.

Compared with other processes, metal stamping and deep drawing have a series of advantages: high production efficiency, low processing cost, high material utilization, stable dimensional accuracy, simple operation, easy mechanization, automation, etc. It is especially suitable for mass production.

Applications of deep drawing metal products

Commercial applications of this metal shaping process often involve complex geometries with straight sides and radii. And the most common industrial usages of deep drawing processes include:

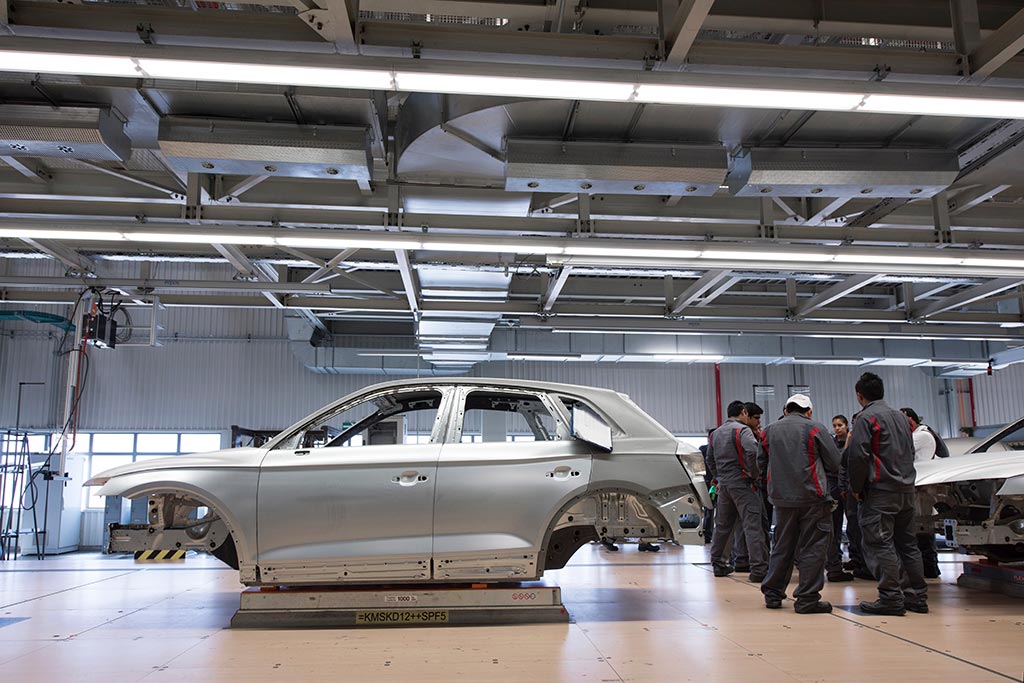

Automotive body and structural parts

Aircraft components

Utensils

White goods

Quality control policy

Sinoway has established our quality management policy in strict accordance with the ISO 9001 standard. We require every step of the order execution process to be managed and controlled according to this policy to provide our customers with consistent quality products and services.

Our quality management policy includes the following aspects.

Inspection of raw material procurement and the quality;

Sample quality inspection of stamping dies;

Pre-production sample quality inspection;

Sampling inspection during the production process;

Quality inspection after mass production;

Packaging and transportation inspection;

All tests must have traceable inspection reports on file.

Win-Win Cooperation

With our specialty in sheet metal deep drawing and stamping production, we have been serving many customers engaged in different industries like Home Appliances, Construction, Automobiles, Heavy Equipment, etc.
